Evaporative Cooling Pads
Corrugated paper cooling pads for fan-and-pad ventilation systems in greenhouses, livestock buildings and suitable industrial spaces. Compare 7090, 7060 and 5090 pad specifications.
Cooling through water evaporation.
Water wets the corrugated pad surface. Exhaust fans draw air through the wetted media as part of a planned ventilation and cooling arrangement.
- Treated corrugated paper with a large water-contact surface.
- Galvanized steel, stainless steel and aluminum-alloy frame examples are shown.
- Color and surface-treatment variants are illustrated in the catalog.
- Ask about custom dimensions, frame options and rodent-protection mesh.
Pad specifications
On smaller screens, swipe sideways to view all specifications.
| Model | Height H (mm) | Width W (mm) | Depth D (mm) | Angle α (°) | Angle β (°) |
|---|---|---|---|---|---|
| 7090 | 1500 / 1800 / 2000 | 600 / 300 | 100 / 150 / 200 | 45 | 45 |
| 7060 | 1500 / 1800 / 2000 | 600 / 300 | 100 / 150 / 200 | 45 | 15 |
| 5090 | 1500 / 1800 / 2000 | 600 / 300 | 100 / 150 / 200 | 45 | 45 |
Slash-separated dimensions are catalog options, not a single combined size. The catalog notes that 5090 sizes can be made to order. Confirm availability and the selected configuration before ordering.
Fan-and-pad system components

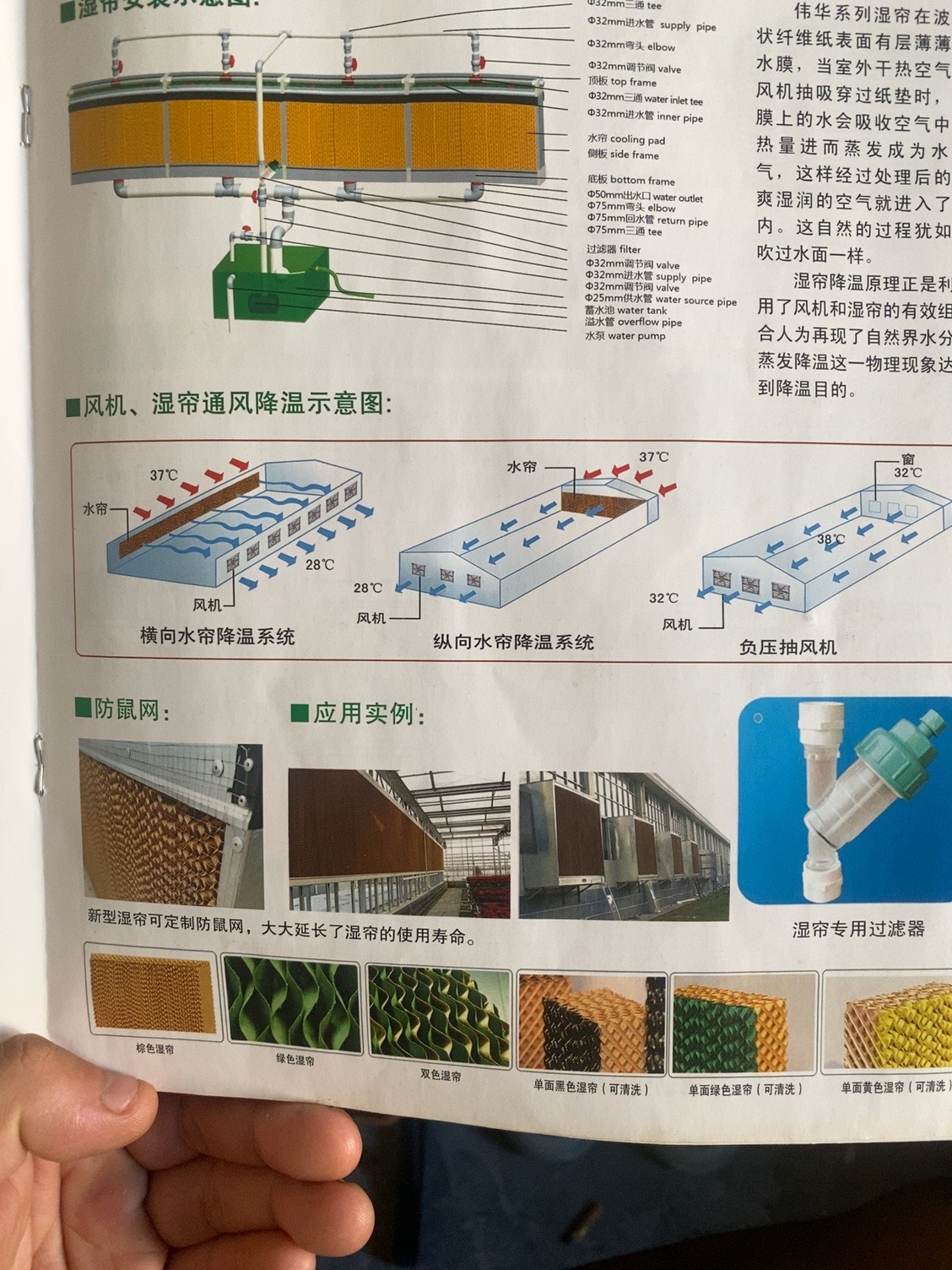

The supplied installation reference shows a water-distribution pipe, top and side frames, a bottom collection channel, a return pipe, a filter, a water tank and a pump. Ask which components are included in your quotation.
Cooling results depend on the project conditions and system arrangement. The temperatures in the original illustration are examples.
View catalog installation and application examples
Request specifications and a quotation.
Send your preferred model, quantity, electrical requirements and delivery destination.
Enquire about this product
